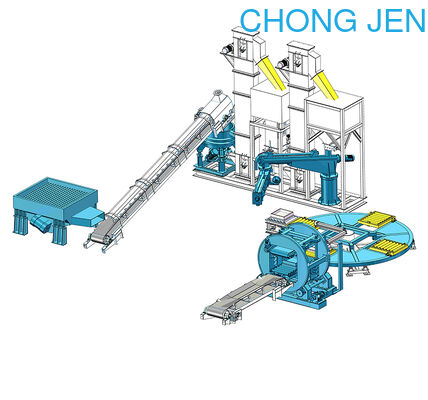

No Bake Resin Sand Molding Line For Medium And Big Castings

No bake resin sand molding is a classic cold-setting sand molding process for castings, which mixes dry silica sand with liquid resin binder and curing agent to prepare molding sand— the sand mold solidifies at room temperature without additional heating or baking, and can be directly used for pouring after molding. It is widely used in single-piece, small-batch and medium-batch casting production, and is a core process for manufacturing medium and large castings with complex structures and high dimensional requirements. Below is a detailed analysis of its core capabilities, typical industrial applications and process characteristics.

The technical advantages of no bake resin sand molding stem from its room-temperature curing, high mold strength and good molding adaptability, and it can be flexibly applied to manual or semi-automated production modes, matching the production needs of different casting scales and complexity. Its key capabilities are as follows:

• The resin binder forms a stable three-dimensional cross-linked structure at room temperature after curing, giving the sand mold high green strength and final strength (compressive strength up to 3~8 MPa). The mold is not easy to deform, collapse or be scoured by molten metal during pouring and solidification.
• The sand mold has low gas evolution and small linear shrinkage (≤0.2%), and the castings produced have high dimensional accuracy (CT8~CT10 grade) and clear contours, with no defects such as sand holes or deformation caused by mold shrinkage.

• The molding sand has good fluidity and plasticity, and can be manually or mechanically filled into mold cavities of any complex shape, perfectly copying the details of the pattern (e.g., deep holes, thin walls, irregular curved surfaces).
• It is suitable for single-piece and small-batch mold making— no need for complex automated molding equipment, and the mold can be made directly on the casting platform, which solves the problem of high mold opening cost for small-batch complex castings in other processes.

• No need for baking furnaces, steam curing or other heating equipment; the curing speed is adjustable (30 minutes ~ 4 hours) by controlling the type and dosage of curing agent, which can be flexibly matched with production rhythm.
• The sand mold can be demolded immediately after curing, and the production process is simplified (no heating/cooling link), which shortens the mold making cycle and reduces the investment in supporting heating equipment and energy consumption.

• The cured resin sand mold has good high-temperature resistance (able to withstand molten metal temperature up to 1600℃) and thermal stability, and is suitable for pouring almost all casting alloys: gray iron, ductile iron, carbon steel, low alloy steel, stainless steel, copper alloy, aluminum alloy and other materials.
• For high-temperature molten metal such as stainless steel and high-alloy steel, the sand mold has no chemical reaction with the molten metal, avoiding casting surface defects such as carburization and oxidation.

• It can be applied to manual molding (for large single-piece castings, e.g., tens of tons of heavy castings) and semi-automated production lines (for medium-batch castings, e.g., auto parts, pump valves); the semi-automated line only needs simple sand mixers, molding platforms and hoisting equipment, with far lower initial investment than vacuum molding lines or green sand automatic lines.
• The mold change process is simple, no need for complex mold clamping and positioning systems, and it can quickly switch production of different castings, meeting the demand of multi-variety and small-batch casting production.

• The resin sand mold has a smooth inner surface, and the castings produced have a surface roughness of Ra 12.5~25μm (can be optimized to Ra 6.3~12.5μm with fine sand). There are no burrs, flash or sand sticking on the casting surface, and the machining allowance can be controlled at 2~5mm (far less than traditional clay sand molding).
• The post-processing workload (grinding, polishing, sand cleaning) is reduced by 20%~40% compared with clay sand castings, saving machining time and production costs.
