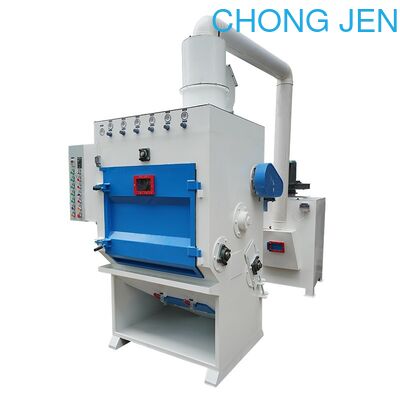

Tumble Rubber Belt Apron Automatic Sand Blasting Machine For Aluminum Parts Cleaning
| MOQ: | 1 |
| Price: | 10000-50000USD/set |
| Standard Packaging: | Export package |
| Delivery Period: | 20-30days |
| Payment Method: | T/T |
| Supply Capacity: | 120sets/year |
Detail Information
Place of Origin
CHINA
Brand Name
CHONGJEN
Certification
CE
Model Number
TM-A100
Blastingmedia:
Sand, Glass Beads, Aluminum Oxide, Silicon Carbide
Application:
Surface Cleaning, Surface Preparation, Rust Removal, Paint Removal
Safetyfeatures:
Emergency Stop Button, Protective Enclosure, Interlock System
Productname:
Automatic Sand Blasting Machine
Blastingpressure:
0.2 - 0.8 MPa
Machinedimensions:
2000mm X 1500mm X 1800mm
Powersupply:
220V/380V, 50Hz/60Hz
Cycletime:
180 - 300 Seconds Per Batch
Dustcollection:
Integrated Dust Collector With HEPA Filter
Controlsystem:
PLC Automatic Control
Highlight:
220V Automatic Sand Blasting Machine
,380V Automatic Sand Blasting Machine
,0.8MPa automatic sandblaster
Product Description
Tumble rubber belt automatic sand blasting machines are automated systems that use a rotating rubber belt to tumble workpieces while blast guns deliver abrasive media for uniform surface treatment, ideal for batch processing small-to-medium parts with complex shapes, ensuring consistent finish, high efficiency, and minimal manual intervention. Below is a detailed breakdown of its capabilities, applications, advantages, and a model & specification table.
Capabilities
- Surface Treatment: Efficiently removes rust, scale, burrs, flash, and casting sand; achieves surface roughening for coating adhesion, shot peening for fatigue resistance, and uniform finishing of complex parts (even hard-to-reach areas).
- Processing Capacity: Handles batch loads (0.3–6 t/h) with maximum single-piece weights from 10 kg to 150 kg, suitable for small-to-medium-sized parts in mass production.
- Automation: Equipped with PLC control for setting blasting time, gun oscillation, and belt rotation; supports integration with loading/unloading systems for continuous operation.
- Media Reclamation: Integrated abrasive recycling systems (sieves, separators, dust collectors) recover and clean media, reducing consumption and environmental impact.
- Dust Control: High-efficiency pulse dust collectors ensure emissions meet environmental standards, maintaining a clean workshop environment.
Model & Specification Table
| Model | Productivity (t/h) | Max Load (kg) | Max Single-Piece Weight (kg) | Blast Guns (pcs) | Dust Collector Air Volume (m³/h) | Power (kW) | Overall Dimensions (L*W*H, mm) |
|---|---|---|---|---|---|---|---|
| TM-A40 | 0.3-0.5 | 100 | 10 | 4 | 2200 | 3.7 (1.5+2.2) | 800*650*2720 |
| TM-A100 | 0.5-1.0 | 200 | 15 | 6 | 3000 | 4.5 (1.5+3.0) | 1200*900*2140 |
Applications
This machine is widely used in various industries requiring batch surface treatment of metal parts:
- Automotive: Engine components (cylinder heads, intake manifolds), gears, and fasteners for cleaning, deburring, and surface preparation before coating.
- Foundry: Castings (steel, iron, aluminum) for sand removal, scale elimination, and surface finishing.
- Aerospace: Precision parts (turbine blades, brackets) for surface preparation and shot peening to enhance fatigue life.
- General Machinery: Forged, stamped, and heat-treated parts (springs, shafts) for deburring, rust removal, and surface strengthening.
- Hardware and Fasteners: Small parts (nuts, bolts, hinges) for uniform surface finishing and cleaning.
