Rotary Drum Automatic Sand Blasting Machine For Small Metal Parts Batch Cleaning

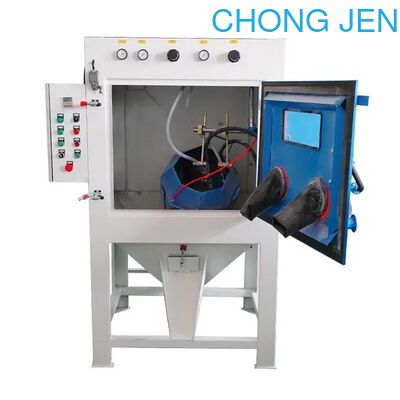

The rotary drum sandblasting cabin is engineered for the automated blasting of high volumes of small workpieces—including zipper sliders, screws, electronic components, and plastic parts. Workpieces placed inside the rotating basket are subjected to automatic blasting by dedicated spray guns. This automated blasting workflow replaces manual labor, substantially cutting down manpower costs and boosting overall production efficiency.

Operators simply load workpieces into the tumbling basket, shut the cabin door, preset the blasting duration, switch on the dust collector, and initiate the machine. Once the cycle ends, all components will be processed thoroughly and uniformly, with zero manual intervention required during operation.

1. The basket diameter and the number of blast guns can be tailor-made based on specific product types and processing requirements.
2. The tumbler blast machine is outfitted with a high-performance dust collector, which ensures that only filtered, clean air is emitted into the atmosphere while enhancing the recovery rate of reusable abrasives.
3. The working chamber operates under negative pressure, eliminating dust leakage entirely. This design prevents environmental pollution and safeguards the health of on-site workers.
4. The rotational speed of the basket is adjustable, allowing it to accommodate the distinct blasting needs of different workpiece types.
5. An integrated discharge chute facilitates the automatic unloading of processed workpieces and abrasives, reducing manual workload and optimizing operational efficiency.

1. The random tumbling motion of the basket guarantees that every workpiece inside is fully and uniformly sandblasted by the end of each cycle.
2. Consistent, uniform surface treatment is a key benefit enabled by the automated blasting process.
3. Blasting abrasives can penetrate hard-to-reach holes and blind corners, while minimizing collision damage even for delicate and sensitive components.
4. The equipment is ideal for processing large batches of small items such as zipper sliders, screws, electronic parts, plastic components, and decorative accessories.
5. Suitable for both metal and non-metal workpieces, it excels at light deburring, surface contaminant removal, defect elimination, scale, oxide and rust stripping, as well as creating a uniform matte finish.
