Heavy Duty LPG Cylinder Shot Blasting Machine for Rust & Old Paint Removal
| MOQ: | 1 set |
| Price: | 10000-100000USD/set |
| Standard Packaging: | Export package |
| Delivery Period: | 45-55days |
| Payment Method: | T/T,L/C |
| Supply Capacity: | 24 sets/year |
Detail Information
Place of Origin
China
Brand Name
CHONGJEN
Certification
CE
Model Number
QGW20
Noiselevel:
Below 85 DB
Operating Voltage:
380V, 50Hz (customizable)
Nominal Capacity:
500 Cylinders Per Hour
Shot Size:
0.2 - 1.0 Mm (typical)
Surface Cleanness Quality:
Bsa2.5
Application:
Cleaning And Surface Preparation Of LPG Cylinders
Material Compatibility:
Steel, Metal
Automationlevel:
Semi-automatic Or Fully Automatic
Blastingmedia:
Steel Shot Or Grit
Product Description

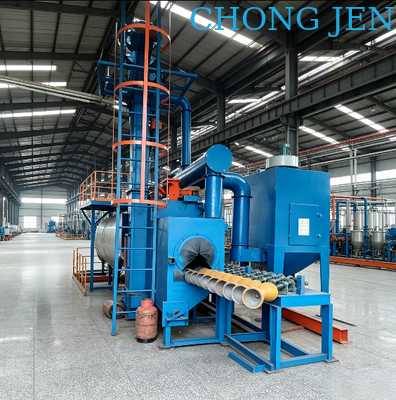

Continuous LPG cylinder natural gas cylinder shot blasting machine with diabolo roller conveyor
Capabilities and applications
Built for surface preparation of LPG, CNG and gas cylinders, our LPG cylinder shot blasting machine strips rust and old paint layers, releases workpiece surface stress and enhances coating bonding performance.
We supply this cylinder blasting equipment in three distinct configurations.
The diabolo roller conveyor type is the first option. It moves LPG cylinders horizontally, and the cylinders spin on the conveyor as they travel. One or two blast turbines are installed on the top of the blasting cabinet. The rotating motion of cylinders during conveying allows blast wheels to clean every surface completely, supporting non-stop continuous production.
The second choice is the spinner hanger shot blasting machine with I or Y style overhead rails, commonly used for small batch blasting work.
The monorail hanger shot blaster is the third model. It works in continuous running mode and can be smoothly connected to upstream and downstream stations of your full production line.
Buyers can choose the most suitable machine type according to their real production requirements.
Models and Specification
| Type | QGW20 | QGW60 | QGW60+ |
|---|---|---|---|
| Maxi. Pipes diameter (mm) | 200 | 600 | 600 |
| Work speed (m/min) | 0.5-2 | 0.5-4 | 2-8 |
| Number of blast wheels | 2/3 | 3/4 | 3/4/5/6 |
| Power per blast wheel (kW) | 7.5/11/15/18.5 | 7.5/11/15/18.5 | 7.5/11/15/18.5/22 |
| Alternative pitch (mm) | No | No | No |
