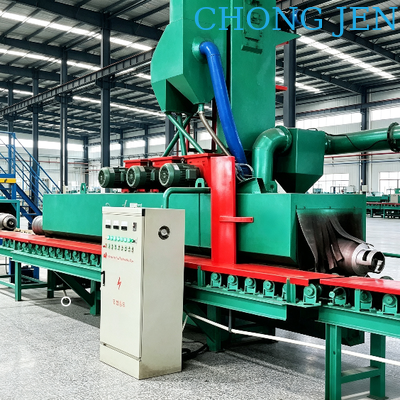

Continuous Diabolo Roller Conveyor LPG Cylinder Shot Blasting Equipment
| MOQ: | 1 set |
| Price: | 10000-100000USD/set |
| Standard Packaging: | Export package |
| Delivery Period: | 45-55days |
| Payment Method: | T/T,L/C |
| Supply Capacity: | 24 sets/year |
Detail Information
Place of Origin
China
Brand Name
CHONGJEN
Certification
CE
Model Number
QGW20
Noiselevel:
Below 85 DB
Operating Voltage:
380V, 50Hz (customizable)
Nominal Capacity:
500 Cylinders Per Hour
Control System:
PLC Or Manual Control Options
Productname:
LPG Cylinder Shot Blasting Machine
Number Of Turbines:
8 Turbines
Materialcompatibility:
Steel, Metal
Shotsize:
0.2-1.0 Mm
Product Description
Continuous LPG cylinder natural gas cylinder shot blasting machine with diabolo roller conveyor
Capabilities and applications
Our LPG cylinder shot blaster handles LPG, CNG and gas cylinders. It removes rust and old paint, relieves surface stress and improves coating adhesion.
Three machine types are available:
- Diabolo roller conveyor model: Cylinders move horizontally and rotate during transport. One or two blast turbines are mounted on the chamber top. Rotation ensures full all-round blasting for continuous production.
- Spinner hanger type: Fitted with I/Y overhead rails, ideal for small-batch blasting.
- Monorail hanger type: Continuous operation, easily integrated with upstream and downstream production processes.
Customers can select the proper model to match their production demands.
Models and Specification
| Type | QGW20 | QGW60 | QGW60+ |
|---|---|---|---|
| Maxi. Pipes diameter (mm) | 200 | 600 | 600 |
| Work speed (m/min) | 0.5-2 | 0.5-4 | 2-8 |
| Number of blast wheels | 2/3 | 3/4 | 3/4/5/6 |
| Power per blast wheel (kW) | 7.5/11/15/18.5 | 7.5/11/15/18.5 | 7.5/11/15/18.5/22 |
| Alternative pitch (mm) | No | No | No |
